Indoor menu boards, 24/7

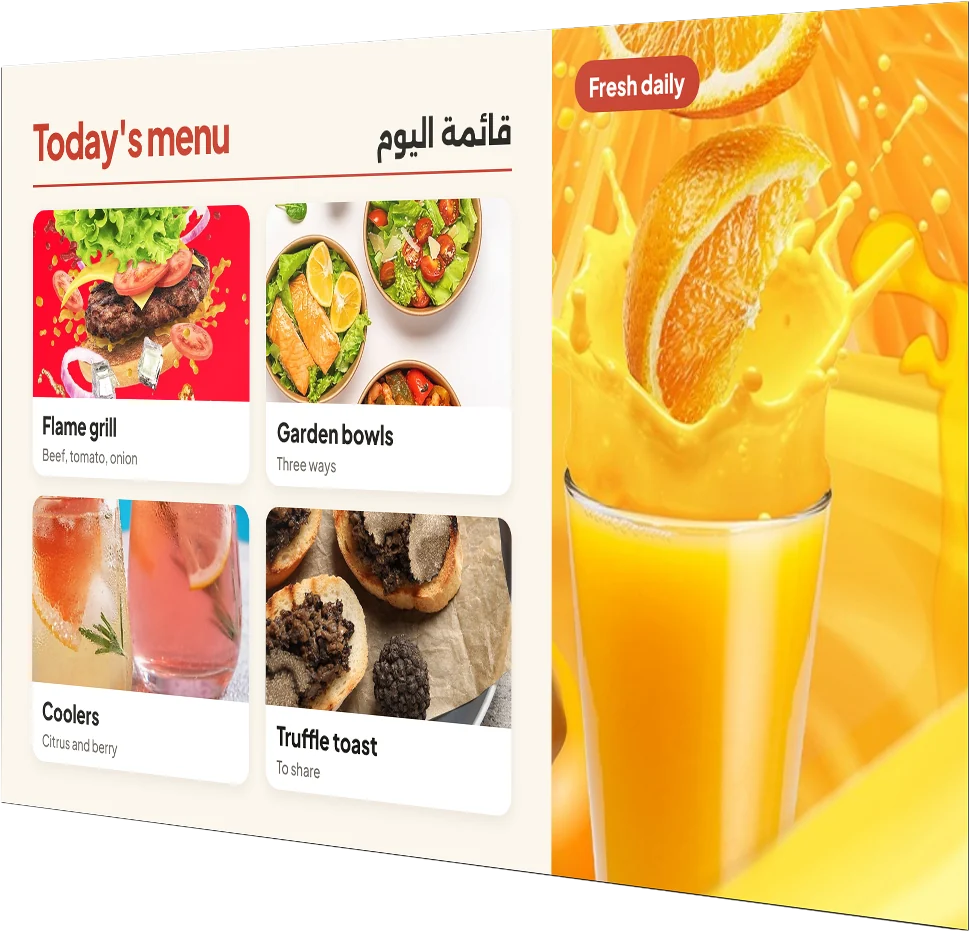

UH5Q Series
- Sizes
- 43 to 86 inches, up to 110
- Picture
- 4K UHD
- Brightness
- 500 nits
- Hours
- 24/7
- Platform
- webOS 8.0
Best forThe main menu board behind the counter
LG COMMERCIAL DISPLAYS
LG Screens, From the Menu Board to the Drive-Thru Lane
LG makes commercial displays for every corner of a restaurant: menu boards, shop windows, the drive-thru lane and LED walls. Tell us where a screen is going and we'll tell you which one.
Eight LG Displays for Restaurants
Each one is a commercial display with LG's webOS built in, made for long hours and managed over the network. Pick by where it goes.
New generation

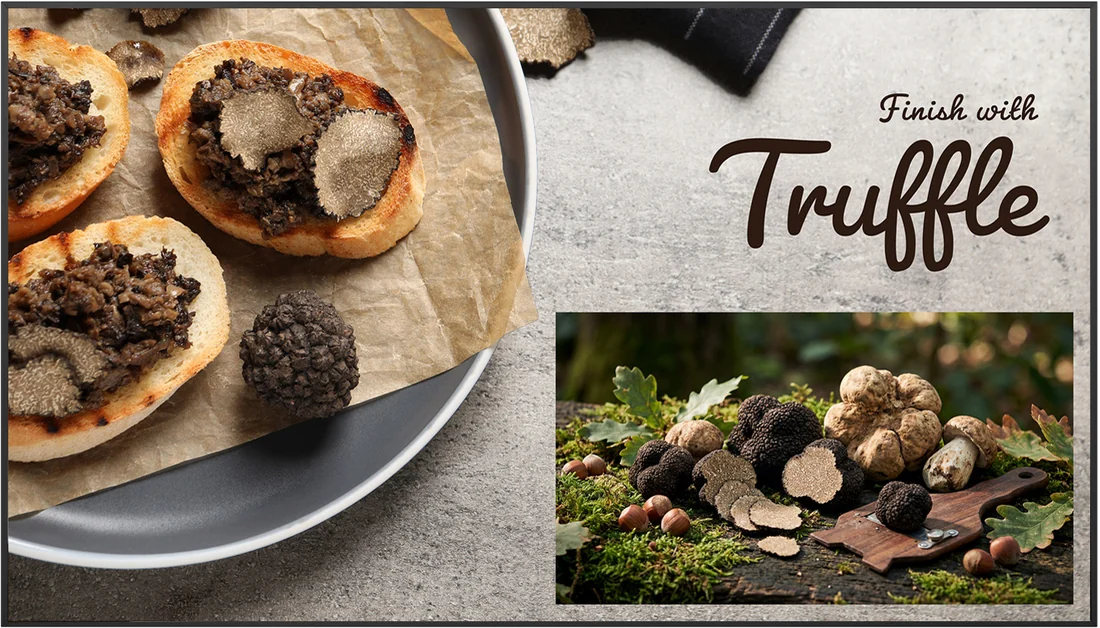

UP5R Series
- Sizes
- 43 to 86 inches
- Picture
- 4K UHD with HDR
- Brightness
- 500 nits
- Storage
- 32 GB
- Extra
- Shock alerts
Best forNew stores that want the latest platform
Essential signage

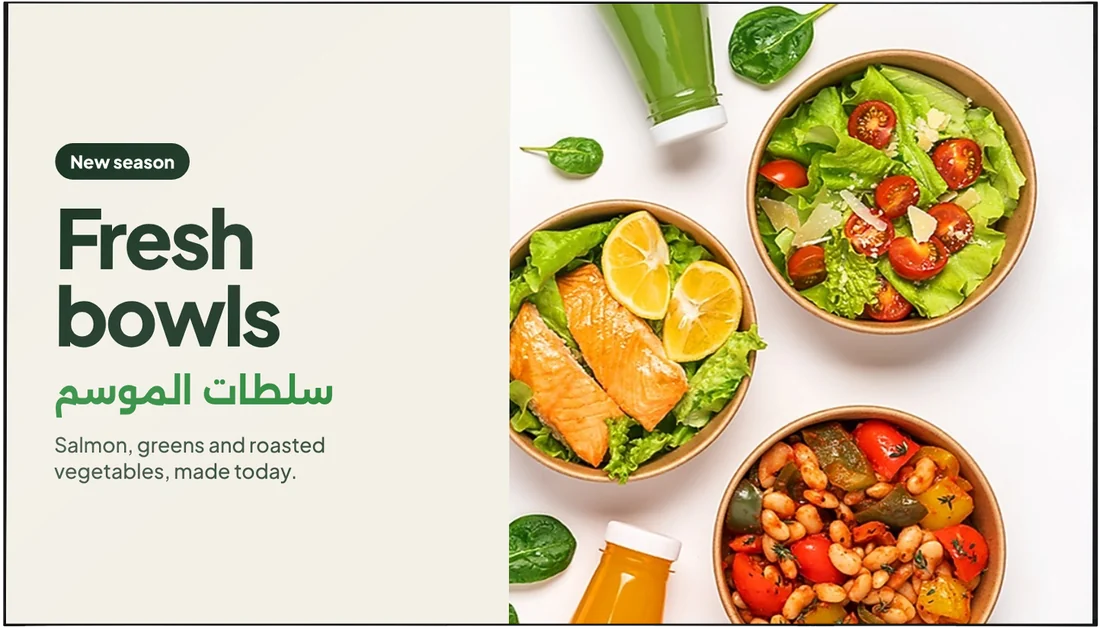

UL3Q and UL5Q
- Sizes
- 22 to 86 inches
- Picture
- 4K UHD
- Brightness
- 350 or 500 nits
- Hours
- 16/7 or 24/7
Best forSmaller stores and second screens
High brightness, indoors
UH7Q Series
- Sizes
- 43 to 86 inches
- Picture
- 4K UHD
- Brightness
- 700 nits
- Hours
- 24/7
- Rated
- IP5X
Best forBright rooms, glass fronts and food courts
Window-facing displays
XS4P Series
- Sizes
- 49, 55 and 75 inches
- Brightness
- 4,000 nits
- Hours
- 24/7
- Extra
- Clear through polarised sunglasses
- Quiet mode
- 2,500 nits, less fan noise
Best forShop windows that face the street
Outdoor displays

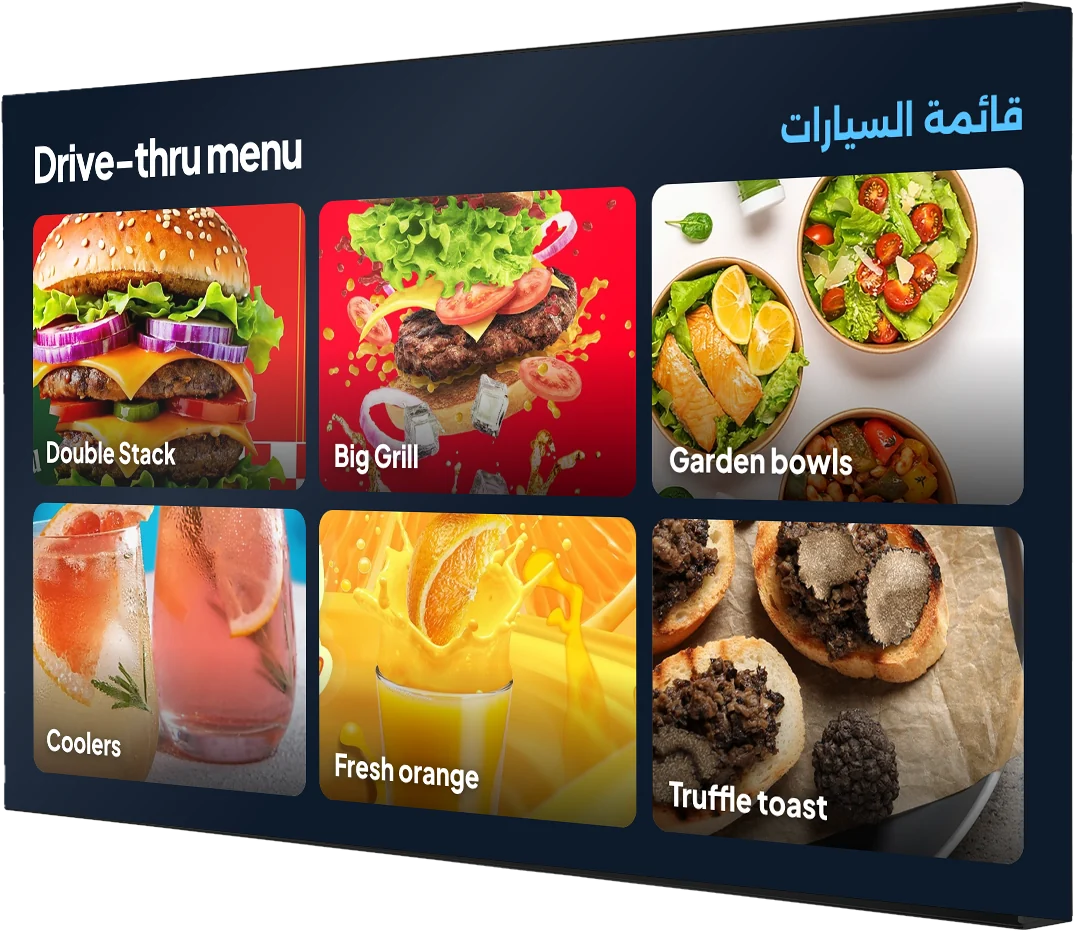

XE4P Series
- Sizes
- 49 and 55 inches
- Brightness
- 4,000 nits
- Rated
- IP56, 5 mm IK10 glass
- Temperature
- -30°C to 50°C
- Also
- XE3P at 3,500 nits
Best forDrive-thru menu boards and outdoor totems
Menu strips
Stretch Displays
- Models
- 86BH5F, 37BH7N, 88BH7F
- Shapes
- 58:9 and 32:9
- Brightness
- 500 to 700 nits
- Hours
- 24/7
Best forHeaders and combos above the counter
Fine-pitch LED

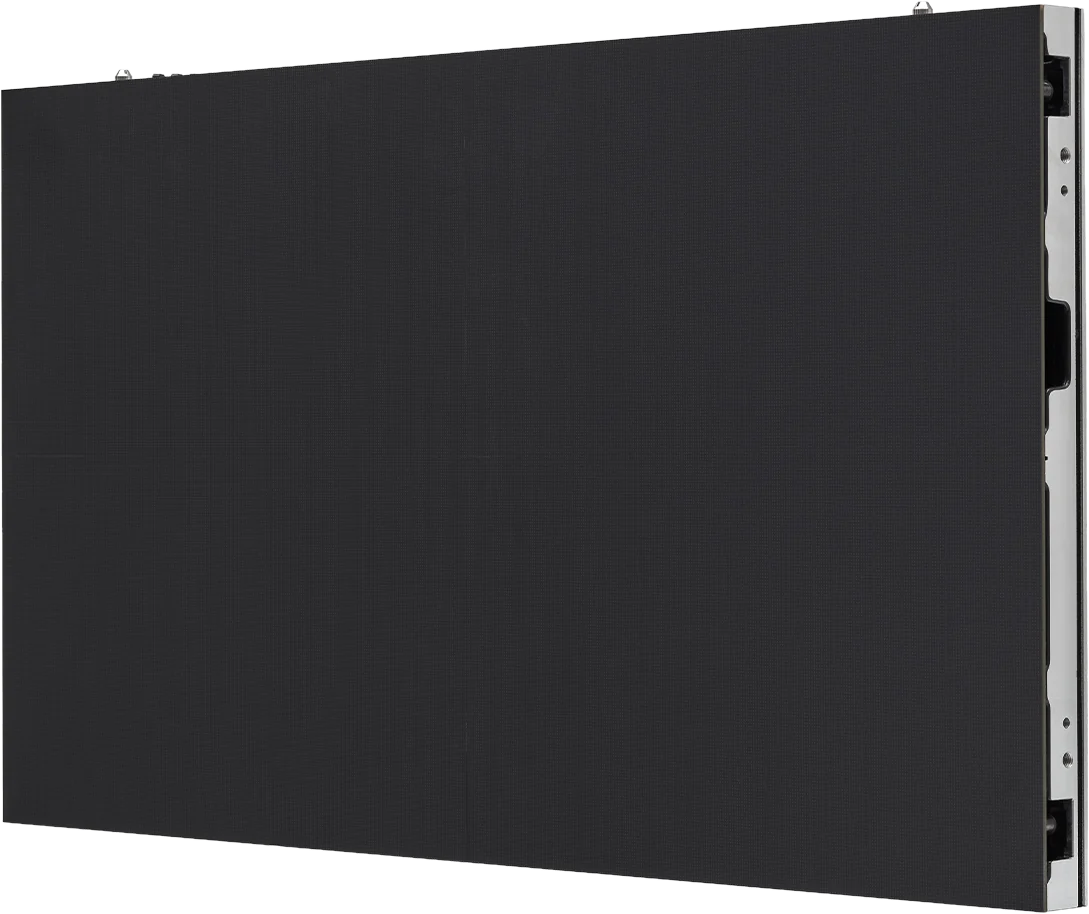

LG MAGNIT LED
- Pixel pitch
- 0.94 to 1.56 mm
- Brightness
- 600 nits
- Cabinet
- 600 × 337.5 mm
- Rated
- IP50
Best forFeature walls and flagship stores
Where Each One Goes
| Where in your restaurant | LG range | Why |
|---|---|---|
| Behind the counter | UH5Q series | 4K, 500 nits, rated for 24/7 use. |
| The newest menu boards | UP5R series | 4K with HDR, 32 GB of storage and shock alerts. |
| Smaller stores and second screens | UL3Q and UL5Q | 4K. UL3Q for up to 16 hours a day, UL5Q for 24/7. |
| Bright rooms and food courts | UH7Q series | 700 nits for rooms with strong light. |
| In the shop window | XS4P series | 4,000 nits, readable through polarised sunglasses. |
| In the drive-thru and outdoors | XE4P series | Sealed to IP56, 4,000 nits, rated from -30°C to 50°C. |
| Above the counter | Stretch displays | 58:9 and 32:9 strips for headers, combos and offers. |
| Feature walls | LG MAGNIT LED | Fine-pitch LED, built in panels to almost any size. |
Not sure? Tell us where the screen goes and how far away guests stand. We'll specify it for you.
Why a Commercial Display and Not a TV
Made for Long Hours
Most models are rated for 24/7 use, with a 50,000-hour lifetime on the main ranges.
webOS Built In
LG's own system plays your content, so there's no extra media player.
Readable in the Sun
Window and outdoor models reach 4,000 nits and stay clear through polarised sunglasses.
Sealed for Outside
XE4P is rated IP56, behind 5 mm impact-rated, anti-reflective glass.
No Yellowing
Window and outdoor models are verified by UL against screen discoloration.
Fits Older Housings
XE4P is designed to fit existing XE4F outdoor casings, which makes upgrades simpler.
LG in the Drive-Thru
4,000+
LG outdoor screens chosen for McDonald's drive-thrus in Germany
Case study published by LG in 2021.
Planned for Heat and Sun
The outdoor XE4P is rated from -30°C to 50°C and sealed to IP56. The window XS4P is rated to 40°C, or 30°C in direct sun, and LG recommends a UV film at some sites. We check sun, glass and airflow at every site before we fit a screen.
One CMS for Every Screen
Our digital signage CMS sends menus and offers to every LG screen over the cloud, by branch and by time of day. Prices and sold-out items can update from your till. The CMS is sold separately.
See the CMSFrom Survey to Switch-On
Survey
We look at each spot: light, viewing distance, power and network.
Specify
We match each spot to the right model and size, in one written quote.
Install
We mount, connect and test every screen, then load your content.
Support
Maintenance contracts keep the screens running.
Where LG Fits In
LG Questions
All questions Not here? Ask us.
Which LG screens do you supply?
The ranges restaurants use most: UH5Q and UP5R for menu boards, UL3Q and UL5Q for smaller stores, UH7Q for bright rooms, XS4P for shop windows, XE4P for outdoors, stretch displays and LG MAGNIT LED.
Which LG screen is best for a menu board?
The UH5Q series for most restaurants: 4K, 500 nits and rated for 24/7. In a bright room or a food court, the 700-nit UH7Q is the better choice.
Can an LG screen go in the drive-thru?
Yes. The XE4P is built for outdoors: 4,000 nits, sealed to IP56 and rated from -30°C to 50°C.
Will a window screen survive direct sun?
The XS4P is made for it, at 4,000 nits. LG rates it to 40°C, or 30°C in direct sun, so we check the glass, the sun and the airflow at your site first.
Can you replace older LG outdoor screens?
Often without new housings. The XE4P is designed to fit the older XE4F casings, which keeps an upgrade simple.
How much do LG screens cost?
We don't publish prices, because it depends on the models, sizes, mounting and installation. Tell us where the screens go and we'll quote it.
